Emshield WFR
Emshield® WFR1 / Emshield® WFR2 / Emshield® WFR3 Fire rated wall expansion joint sealing systems, Emshield WFR1 (Wall, Fire-Rated 1-Hour/ Wall, Fire-Rated 2-Hour, Fire Rated 3-Hour) are watertight, fire-rated, dual-sided primary sealing systems for new works, refurbishment and retrofit sealing of structural movement / expansion joints (and construction joints if necessary), in the vertical plane, for internal and external walls and heads-of-wall applications.
In addition to accommodating joint movement of up to 100% (=/- 50%), the Emshield WFR 1,2 and 3 systems are also UL-certified fire barriers and preformed alternatives to the multiple -part build-ups of extruded movement joints sealants plus fire resistant caulking and fire stopping materials, with all associated possibilities for weakness and potential performance variations etc.
Emshield WFR systems feature dual-sided silicone sealing surfaces adhered to a fire-retardant impregnated foam backing., which means that both sides of the expansion joint are waterproof, and fire rated. Emshield WFR systems therefore eliminate the need for fire blankets, mineral wools, extruded / gun applied sealants, fire resistant caulking compounds, cover plates, or other forms of fire stopping and barrier materials.
WFR2 Flat

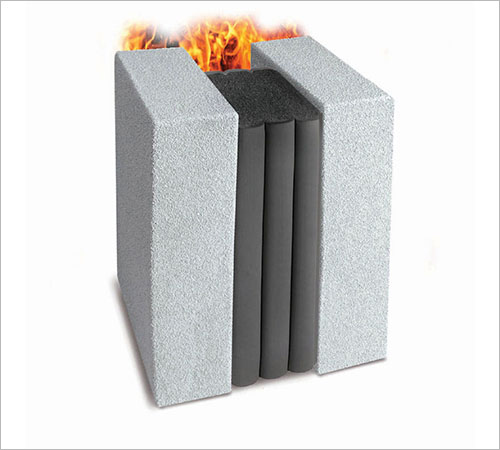

WFR2 Flames

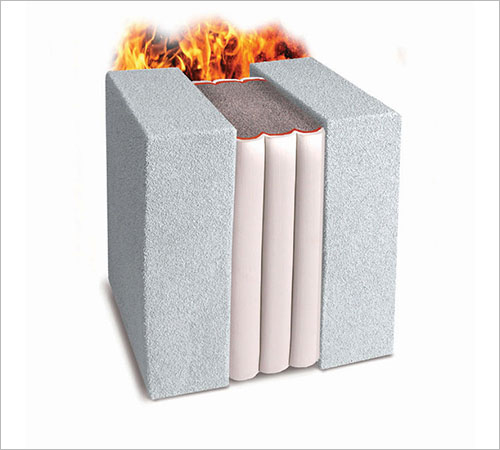

WFR3 Flames
These unique Emseal solutions can be used alone or under any other expansion joint cover plates or fillers as and where the depth of the substrate wall allows–with Emshield WFR solutions just ‘one install does it all’ as our American friends say! As with all Emseal movement joint solutions, this non-invasive anchoring technology with structurally bonded solutions, vastly simplifies installation and project scheduling. Emshield WFR fire rated wall expansion joints are tested and certified by Underwriters Laboratories (UL and ULC), to the rigours of UL 2079 for both walls and heads-of-walls expansion joints, plus they have also been certified by the California Department of Public Health CDPH/EHLB/Standard Method Version 1.2, 2017 as low-emitting construction materials to support project sustainability credentials.
For your specific project joint sealing requirements and conditions simply contact NCC for fast and comprehensive technical and often cost-saving advice and assistance.
For more information on the recent projects using the Emshield WFR systems and other Emseal Project Case Studies please see the Case Studies Page.
Emshield WFR2 Product Data Sheet - View / Download
Features
- 1, 2 or 3-hour UL2079 Fire-Rated, UL & ULC Listed fire barrier expansion joint
- Watertight
- Airtight
- Insulates
- Non-invasive anchoring
- Sound attenuating STC 62; OITC 52
- Low-Emitting Material per CDPH/EHLB V1.2, 2017
- ABAA Compliant
- Resists hurricane force wind & water
- Low-Tension silicone and foam hybrid sealant
- Rapid installation–new or retrofit
- Aesthetically and practically versatile
- Easily handles changes in plane and direction
- One product, One Install Does It All–fire-rated, watertight, airtight, 100% movement, quiet, non-invasive anchoring, UL 2079 Certified
Emshield WFR Cross Section Sizes: 12 – 150mm (Profile Depth for all sizes: 100mm)
Note: Sizes under 40mm are manufactured with a single silicone bellows. Larger sizes incorporate multiple silicone bellows.
Movement Capability: Total 100% (+50% and -50%) of nominal supplied size.
Colour: A range of colours available
